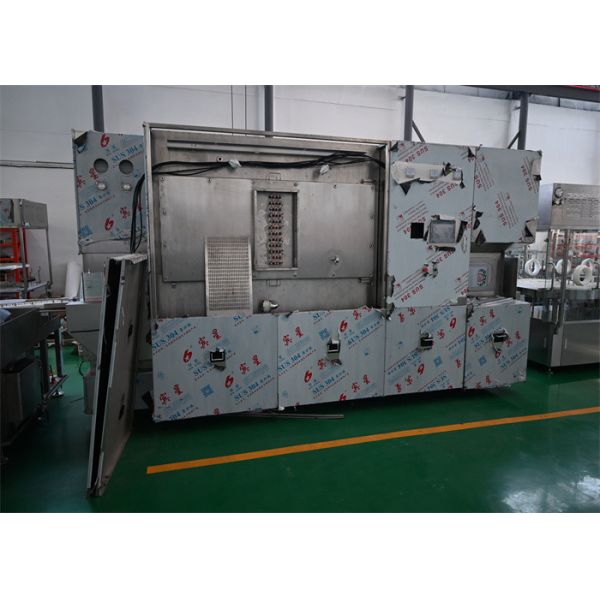

5-25ml medical vial filling and sealing mahcine for oral liquid,
with washing, sterlization, filling and sealing, PLC control and
High Capacity

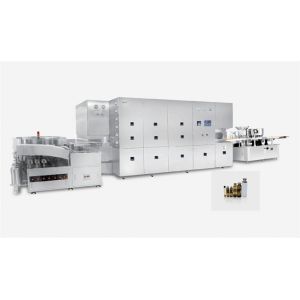

This integrated production line for 5-25ml medical oral liquid
filling machine comprises the LYQCL series vertical ultrasonic
bottle washing machine, the LYASMR series tunnel hot air
circulation sterilization oven, the LYYGZ series filling capping
machine, and more. The integrated system boasts a sleek and compact
design, occupying minimal space while being easy to maintain.
Specifically designed for filling and capping 5-25ml oral liquid
bottles, the oral liquid filling machine facilitate essential
production steps including water spraying, ultrasonic cleaning,
rinsing, air rinsing, drying sterilization, cooling, filling, and
capping within pharmaceutical settings.
The cutting-edge design philosophy of this integrated line ensures
not only advanced functionality but also structural integrity and
consistent performance. It serves as a crucial equipment backbone
for aseptic pharmaceutical production, aligning seamlessly with the
stringent quality management standards outlined in current national
Good Manufacturing Practice (GMP) regulations. By offering reliable
equipment and technical support, this system plays a pivotal role
in meeting the demanding requirements of pharmaceutical
manufacturing facilities, thereby enhancing the efficiency and
safety of oral liquid production processes.
5-25ml medical oral liquid filling mahcine Specifications:
| Model | LLYQCL100+LYASMR620/48+LYYGZ16 |
| Bottle Spec | 5-25ml oral liquid bottles |
| Production Capacity | 6000-22000 BPH |
| Clarity | >99% |
| Breakage Rate | <0.5% |
| Filling Volume Torlerance | +/- 0.5-2% |
| Fresh Water Consumption and Pressure | 0.2-0.4 Mpa/ 0.6-1.0 cbm/h |
| Clean Air Consumption and Pressure | 03-0.6 Mpa / 35-80 cbm/h |
| Capping PASS rate | >99% |
| Wind Excretion Volume | 3500-4000 cbm/h |
| Weight | 7500Kg |
| Total Power | about 72KW 380V 50Hz |
| Size | 9920mm L x 2260mm W x 1680mm H |
5-25ml medical oral liquid filling mahcine Features:
The oral liquid filling machine is an integrated machine that
combines filling and capping processes. It features a large
turntable for bottle feeding, reciprocating needle tracking
filling, and linear continuous capping. With minimal bottle
transfer points, the oral liquid filling machine utilizes a
single-blade side-acting rolling principle or a three-blade rolling
principle. The blades can be finely adjusted in both vertical and
horizontal directions to better suit domestic packaging materials,
ensuring smooth and damage-free capping.
The entire production line employs advanced intelligent electrical
control technology and a user-friendly human-machine interface.
This integration allows for seamless coordination between
mechanical and electrical components, enabling both synchronized
control and standalone operation. It ensures the smooth operation
of the entire line, displaying machine status and fault information
for self-diagnosis, fault analysis, and troubleshooting methods.
This level of automation control optimizes the production process
and enhances overall efficiency.
